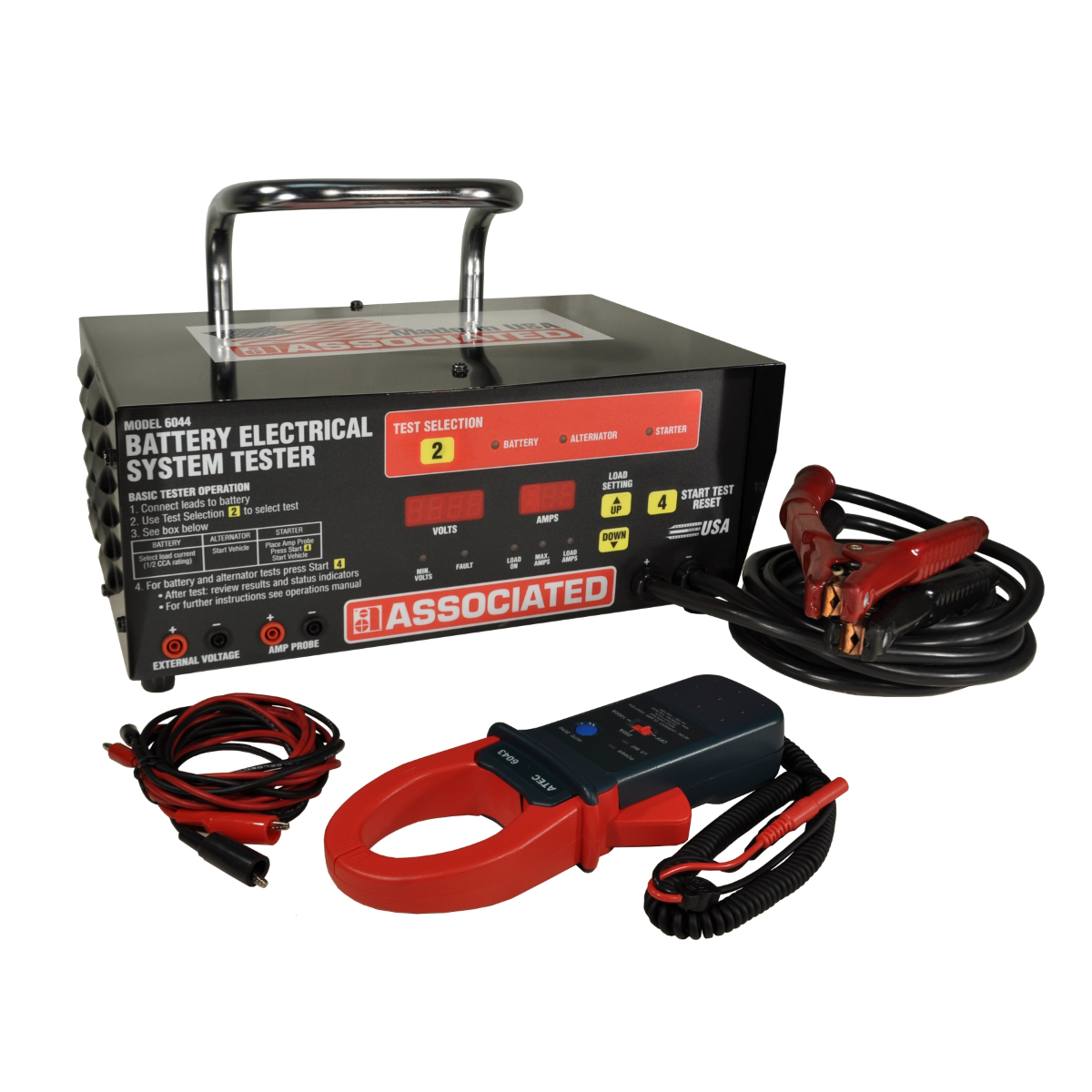

Associated 12V and 24V Electrical Systems Tester for Heavy Duty

Associated 12V and 24V Electrical Systems Tester for Heavy Duty

Features and Benefits:

• Vinyl-Coated Steel “Flexi-Spring” Clamps with 800 Amp Copper Jaws that provide strong, secure connections while preventing accidental slips - ensuring safe operation.
• Easy-to-Read LED Voltmeter and Ammeter - offers quick and accurate monitoring of electrical performance at a glance.
• Max/Min Current and Voltage Tracking - captures performance peaks and lows to aid in diagnostics and troubleshooting.
• Microprocessor-Based Control Board with Heavy-Duty Conformal Coating - Protects against reverse connections, moisture, and dirt for long-lasting durability in shop environments.
• Microprocessor-Controlled Fan Cooling - Ensures efficient heat management for continuous, high-duty cycle use.
• Testing of 12V and 24V Electrical Systems - Expands versatility to cover a wider range of automotive and industrial applications.
• Automatic 70‐500 Amp Variable Load Tester - Delivers flexible, precise load testing without manual adjustments.
• Temperature Compensation Chart Silk-Screened on Cabinet - Provides quick reference during testing to ensure accurate results.



Engineered for performance and durability, this advanced load tester is built to handle demanding shop environments. Featuring heavy-duty vinyl-coated steel “Flexi-Spring” clamps with 800 Amp copper jaws, it ensures secure connections every time. The easy-to-read LED voltmeter and ammeter provide clear monitoring of system performance, while max/min current and voltage tracking delivers precise diagnostics. A microprocessor-based control board, protected by a rugged conformal coating, safeguards against reverse connections, moisture, and dirt. For extended, high-duty cycle use, a microprocessor-controlled fan keeps the unit cool and reliable. Capable of testing both 12V and 24V electrical systems, it automatically adjusts as a 70‐500 Amp variable load tester. A detachable industrial inductive amp probe with a degaussing button adds versatility and precision for accurate current measurement. For added convenience, a silk-screened temperature compensation chart is located on the cabinet for quick reference, and the unit includes separate light-gauge, high-impedance test leads with alligator clips to easily access tight spots.


Warranty: 1 yr warranty from date of shipment from vendor
